RT809F Programmer Software

RT809F Programmer Software is the official software for the RT809F universal programmer. It supports memory chips, BIOS, EEPROM, NAND, eMMC, and microcontrollers from various manufacturers.

The program allows you to:

• read, erase, and write chips;
• restore BIOS and UEFI firmware;
• work with automotive control units and consumer electronics;
• update firmware and the supported chip database.

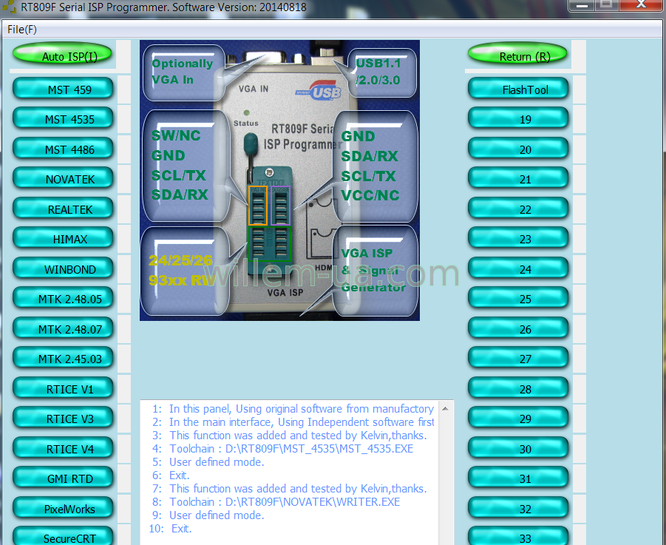

The RT809F Software interface is easy to use, supports automatic chip detection, and regular updates. It is suitable for both professional workshops and electronics repair specialists.

Features:

• Reads and writes 8-pin and 16-pin memory chips commonly used on computer motherboards, laptops, LCDs, TVs, routers, and home appliances.
• Reads and programs DDR1/DDR2/DDR3 SPD memory.
• Supports 8-pin and 14-pin chips used in laptops (for password storage) and batteries (especially 24RF08/6480AR/BR9080/9016).
• Supports all 24 series, IIC EEPROM memory. Important! The programmer can automatically detect chip models from 24C01 to 24C16, and 25 series SPI. Automatically detects the write protection level on pin 7 of the 24 series.
• Supports all 25 and 26 series SPI flash memories, supporting automatic identification, with a capacity of up to 256 Mbit. Supports all 93-series MircroWire memory, including Japanese special chips.
• The programmer supports double-bank RTD2120 memory and reads and writes it online.
• Reads and writes DDC-EDID data from LCD displays and LCD TVs online (without disassembling). This makes EDID data issues very easy to resolve.
• Supports reading and writing EDID data on laptop displays online, making it easy to resolve display detection issues on Dell and Sony laptops.
• Supports monitor board manufacturers such as Leroy, Ding Branch, Rainbow Star, Triumph, Kang Yue, and Wang Jie. Works with the MCU via the VGA port without disassembling the monitor. Supports reading and writing LCD and TV board firmware in both online and offline modes. Support for TPV, Proview, Samsung, LG, ACER, LENOVO, HP, IBM, BENQ, HKC, Hisense, Skyworth, Konka, Changhong, TCL, Haier, Prima, and other major brands. Support for NOVATEK, MTK, the MST, Genesis, TSUM, SE, FT, REALTEK, the Winbond WELTEND, MySoN, China and Asia micro and PIXELWORKS chipsets. You can use official ISP software or third-party software, ensuring full functionality and ease of use.
• Support for Samsung, Philips, AOC, BENQ, and NESO. Support for the NT68F63/NT68F632/NT68F633 MCU and WT61P4 series. Samsung LCDs have a common problem with corrupted firmware, which you can resolve for free. It has a special function for reading original MCU firmware online. It can read and save original firmware from good MCUs. Supports SE1059 series reading and writing. Easily solves Samsung black screen issues.
• Online programming of WINBOND series MCUs, such as the W78E65P-40. Works with M6759, SM5964, SM89516, P89C51RD, and TP2804 MCUs, which often have corrupted firmware. Supports MTK series LCD and DVD programs online, such as MT2389, MT1379, MT8223, and 8226.
• Supports SUNPLUS DVD programs online, such as 8202D, 8202S, 8202L, 8281, and 8200.
• Online support for nine satellite receiver series, including Guoxin, Haier, China and Asia, and NEC.
• USB-powered, programmer self-test mode, and original ISP online programming mode, PIN test, power detection on the programmed board, and bad pin detection in offline read and write mode.
• The programmer has a high-speed MCU processor.
• The USB interface transfers both data and power to the programmer, eliminating the need for a bulky power adapter and making it easy to use.
• The programmer features antistatic and in-port protection measures for the programmer's chips to ensure reliability.
• The number of supported chips is constantly being expanded. If you need to add a new chip, please contact support. 24, 25, 26, and 93 series chips can be added manually.

official website http://www.ifix.net.cn/thread-325-1-1.html
