Disassembly OnePlus 5 on the photo

 OnePlus 5 remains in the spotlight. The novelty of the Chinese company has already been tested for strength, performance tests and photo and video capabilities, and now the focus has been on building a smartphone.

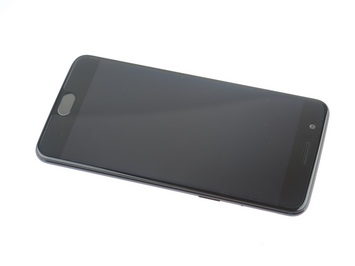

 Recall, the gadget is made of aluminum, and its 5.5 "Optic AMOLED-display protects the glass Gorilla Glass 5. Resource MyFixGuide shared instructions for disassembling the device, accompanied by its high-quality images. It demonstrates that the flagship has a downed and rather complex structure.

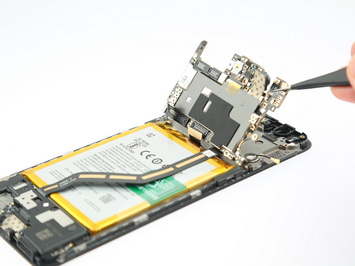

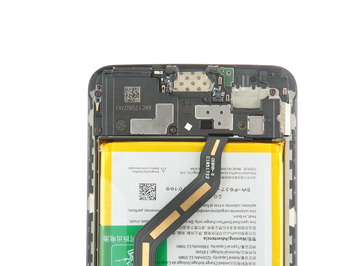

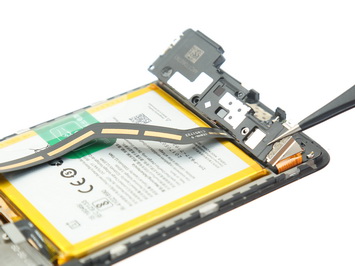

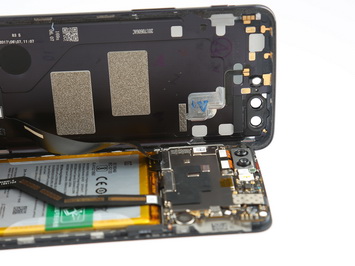

To access the main boards it is necessary to remove the additional cover, the "glands" themselves are fastened with a large number of screws and glue. The battery (by the way, manufactured by ATL) is removed easily - you just need to pull the green ribbon. Cameras disconnect easily, which can not be said about the board at the bottom of the case. Estimates of maintainability the author does not put, but only shows the mechanism of disassembly for subsequent repairs

Specifications

  • Android 7.1.1
  • Display 5.5 inches, 1080x1920 pixels, 401 ppi, Optic AMOLED, automatic brightness control, Corning Gorilla Glass 5
  • Chipset Qualcomm Snapdragon 835 MSM8998 (4 cores Kryo 2.45 GHz, 4 cores Kryo 1.9 GHz), graphics processor Adreno 540
  • 6/64 GB or 8/128 GB of memory, no memory cards
  • Battery Li-Pol 3300 mAh, fast charging Dash
  • Two nanoSIM cards
  • Front camera 16-megapixel, f / 2.0, EIS, Auto HDR, 1080p
  • The main camera is dual, 16-megapixel, f / 1.7, EIS; second module 20-megapixels, f / 2.6, phase autofocus, optical zoom x1.6, various shooting modes, LED flash
  • Active noise reduction system
  • Equalizer Dirac HD
  • Fingerprint sensor
  • Proximity sensor, lighting, magnetic field, accelerometer, gyro, Sensor Hub
  • FDD LTE Band 1/2/3/4/5/7/8/12/17/18/19/20/25/26/28/29/30/66, TDD LTE Band 38/39/40/41
  • WiFi 802.11 a / b / g / n / ac, dual band, Bluetooth 5.0, aptX HD, NFC, USB 2.0, USB OTG
  • GPS / A-GPS, GLONASS
  • Size 154.2 Х 74.1 Х 7.3 mm, weight 153 grams

Based on MyFixGuide | gizmochina.com
